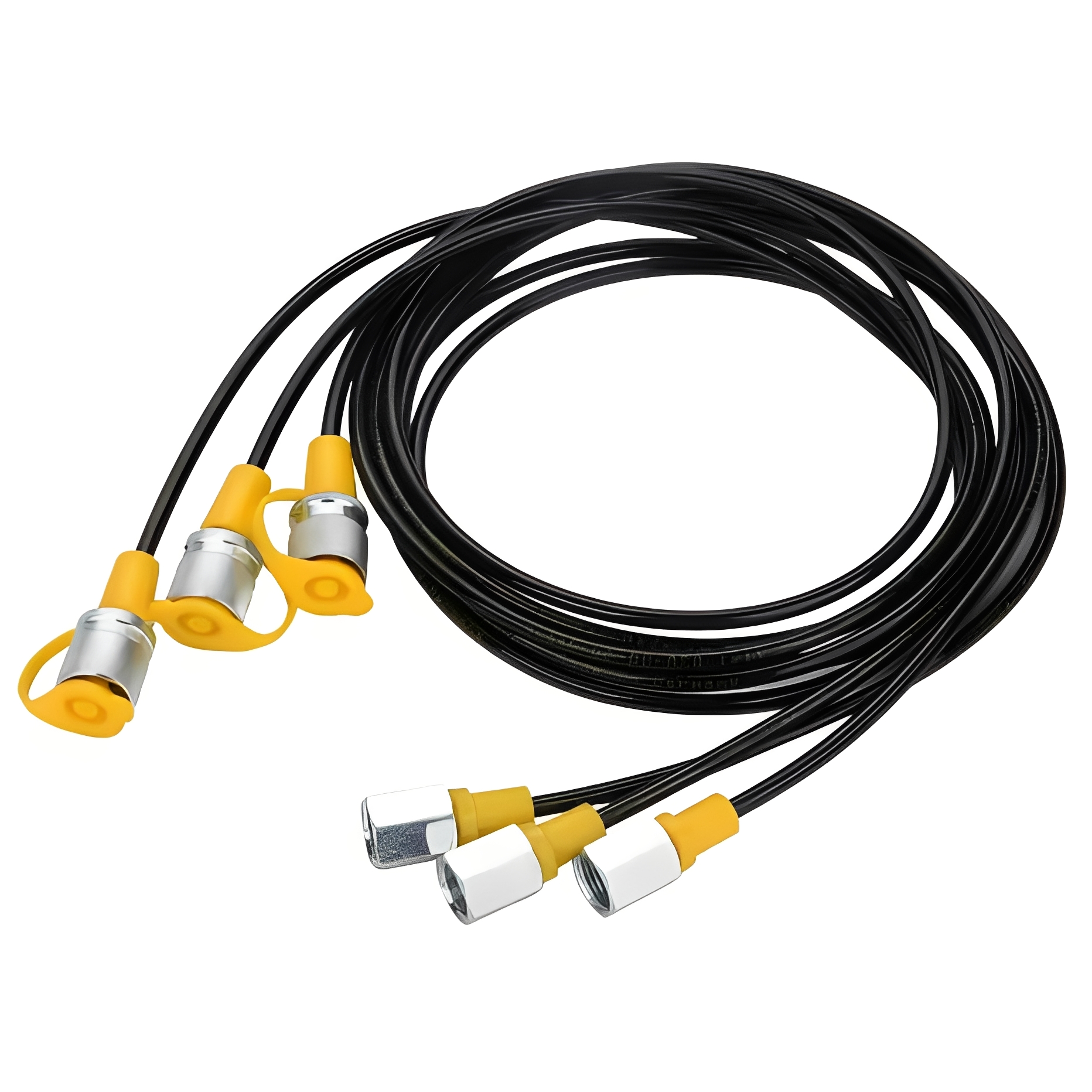

Test Pressure Hose
Hose
Dimensions:
Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in Hydraulic systems pressure test equipments and test points, general mini hydraulic equipments. Automotive roof and boot opening system and truck's cab lifting systems.
Consult Now
Consult Now
Consult Now
Product Description:
Application:
Very High pressure mini Hydraulic Lines 250 to 630 bar.
Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in Hydraulic systems pressure test equipments and test points, general mini hydraulic equipments. Automotive roof and boot opening system and truck's cab lifting systems.
Structure:
Core:PA(polyamide)
Reinforcement:Single braid of aramid fiber
Cover:PU(polyurethane)
Temperature-40 to 100℃
|
Test pressure hose |
||||||||||
|
I.D |
O.D |
W.P(working pressure) |
B.P(burst pressure) |
MIN.Bend Radius |
Remark |
|||||
|
inch |
mm |
inch |
mm |
bar |
psi |
bar |
psi |
mm |
inch |
|
|
2/25 |
2 |
1/5 |
5 |
630 |
9135 |
1900 |
27550 |
20 |
0.79 |
|
|
3/25 |
3 |
6/25 |
6 |
630 |
9135 |
1600 |
23200 |
30 |
1.18 |
|
|
3/25 |
3 |
6/25 |
7 |
1000 |
14500 |
2500 |
36250 |
30 |
1.18 |
|
Product Description:
Test Pressure Hose is commonly used to pressure test various systems and equipment to ensure their safety and performance under specified pressures. These hoses are designed to withstand high pressures and common applications include:
Industrial equipment inspection: Check the operation status of industrial equipment and systems under high pressure conditions.
Hydraulic system testing: to ensure that the various components of the hydraulic system can withstand the specified working pressure.
Pipe pressure test: Test the tightness and pressure resistance of the pipe system.
Gas and liquid delivery: Used to deliver the gas or liquid required during the test process to ensure the normal operation of the system.
Precautions for use
Check the working pressure of the Test Hose: ensure that it is appropriate for the test requirements.
Regular maintenance and inspection: Avoid safety problems due to wear or damage.
Avoid overload: Follow the pressure and temperature limits provided by the manufacturer.
When purchasing or using Test Pressure Hose, make sure it meets the specific test requirements and operating environment.
